Specifications
Operating System: Customized Android 12-based Rose OS

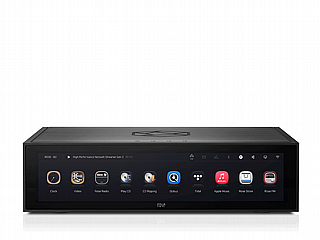

Exterior
Dimensions: 16.9” x 12.6” x 4.9”
Weight: 24.3 lbs
Materials: Precision-machined solid aluminum chassis for reduced vibration and noise
Display: 15.4” Full HD IPS LCD Touchscreen (1920 x 382 resolution)
CPU: Octa-Core RK3588 CPU
GPU: ARM Mali-G610 MC4
Memory: LPDDR4X 8GB
Storage: 32GB eMMC (System Use Only) + Expandable via USB, MicroSD, or 2.5” SSD
DAC Chip: ESS SABRE ES9039PRO
Clock: High-Precision Femto Clock with ROSE DPC™ Module
Output Level: 9.0Vrms (Balanced), 4.5Vrms (Unbalanced)
Signal-to-Noise Ratio: 131.4dB (Balanced), 124dB (Unbalanced)
Dynamic Range: Max 150 dB (CCITT filter)
Stereo Crosstalk: Max -143dB (20Hz-20kHz)
Output Frequency Response: 20Hz to 75kHz (+/-0.5dB)
Network Connection
Network Support: Wired: Gigabit Ethernet 10/100/1000 BASE-T
Wireless: External USB WiFi dongle supported
Bluetooth: Bluetooth 5.4 with aptX

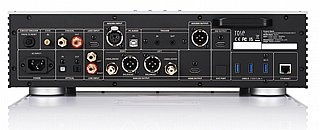

Input/Output
Audio Input: Optical x 1, Coax x 1, AES/EBU x 1, HDMI eARC x 1, USB-B x 1
Audio Output: Optical x 1, Coax x 1, Pre-OUT (Balanced XLR x 1, Unbalanced RCA x 1), I²S-HDMI x 1, AES/EBU x 1
Video Output: HDMI 2.0 x 1 (up to 3840 x 2160 / 60Hz)
Power
Power Supply: Built-in toroidal linear power supply
Remote Control
Remote Control: Infrared (IR) remote control
Remote App: ROSE Connect (Android, iOS)
