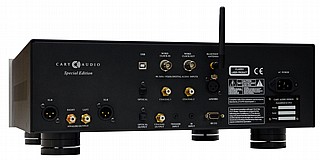

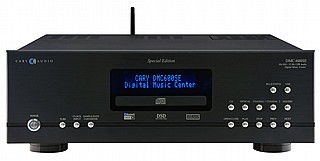

DMC-600SE DIGITAL MUSIC CENTER מבית CARY AUDIO

The following section describes the DMC-600SE basic specifications. The specifications are subject to change without notice or obligation.

CD Mechanism  Triple-beam laser, multi-speed CD transport

Formats            CD AUDIO (CD-DA), CD-R, CD-RW

Master Clock Jitter         Below measurable levels

Digital Sampling Rates (Fs)          44.1kHz to 768kHz

Digital Filter      8x Oversampling Digital Filter

Digital/Analog Converters          (1) 4 channel AK4495EQ and (2) 2 channel AK4490EQ for true balanced and single ended outputs

BLUETOOTH      CSR bluetooth v 4.0 with aptX low latency audio decoder

Analog Filter      3rd Order Bessel

Analog Outputs Balanced XLR , Single – Ended RCA

Digital Outputs  Coaxial, Toslink operating Sample Frequency (Fs) from 44.1 kHz to 192 kHz, 16 to 24 bit

Digital Inputs     USB x 1 (PC & MAC)

BLUETOOTH x1

AES/EBU x1, Coaxial x2, Toslink x1

Master Clock Loop x1

Digital Input Sample Rate           USB: operating Sample Frequency (Fs) from 44.1 kHz to 384 kHz, 16 bit to 32 bit, DSD 64, and DSD 128

BLUETOOTH: Sample Frequency (Fs) 44.1 kHz, 16 bit

AES/EBU, Coaxial, Toslink: operating Sample Frequency (Fs) from 44.1 kHz to 192 kHz, 16 to 24 bit

Tube Compliment          12au7 x 2

Control Trigger input 12VDC x1

IR control x1

Communication RS232 full remote configuration interface

Power Input      Configured at factory for either 110-120 or 220-240 VAC, 50-60 Hz

Power Consumption      86 Watts

Finish    Black powder coated matte chassis with silver or black aluminum faceplate

Weight 35 lbs

Dimensions       5.25″ H x 17.25″ W x 16.25 ” D

AUDIO (CD)

Frequency Range           2 Hz – 22 kHz (44.1 kHz)

Amplitude Linearity        0.1 dB (20 Hz – 20 kHz)

Phase Linearity  3 degrees (20 Hz – 20 kHz)

Dynamic Range 121 dB (1 kHz)

Signal to Noise Ratio      113 dB (1 kHz)

Channel Separation        106 dB (1 kHz)

Total Harmonic Distortion          0.0004% (1 kHz)

Audio Output Level        2.0V RMS (220 Ω output impedance) for Volume in 0.0dB

3.0V RMS (220 Ω output impedance) for Volume in +8.0dB

Balanced XLR Output     +/- 2.0V RMS (440 Ω output impedance) for Volume in 0.0dB

+/- 3.0V RMS (440 Ω output impedance) for Volume in +8.0dB

PC-USB Playback (PCM & DSD)

Frequency Range           2 Hz – 100 kHz

Signal System    16, 20, 24, & 32 bit PCM and 1 bit DSD

Sampling Frequency       44.1 kHz to 384 kHz PCM and 2.822MHz – 11.288 MHz DSD

Dynamic Range 123 dB

DSD System Clock          Frequency 22.5792 MHz

Signal to Noise Ratio      112 dB

Audio Output Level        2.0V RMS (220 Ω output impedance) for Volume in 0.0dB

3.0V RMS (220 Ω output impedance) for Volume in+8.0dB

Balanced XLR Output     +/- 2.0V RMS (440 Ω output impedance) for Volume in 0.0dB

+/- 3.0V RMS (440 Ω output impedance) for Volume in +8.0dB

SPDIF PLAYBACK; COAXIAL, TOSLINK, AES/EBU (PCM)

Frequency Range           2 Hz – 100 kHz

Signal System    16, 20, and 24 bit

Sampling Frequency       44.1 kHz to 192 kHz PCM

Dynamic Range 123 dB

DSD System Clock          Frequency 22.5792 MHz or 24.576 MHz

Signal to Noise Ratio      112 dB

Audio Output Level        2.0V RMS (220 Ω output impedance) for Volume in 0.0dB

3.0V RMS (220 Ω output impedance) for Volume in+8.0dB

Balanced XLR Output     +/- 2.0V RMS (440 Ω output impedance) for Volume in 0.0dB

+/- 3.0V RMS (440 Ω output impedance) for Volume in +8.0dB
