Technical Specifications
Output Power
Rated Output Power 70W + 70W (8ohm)
100W + 100W (4ohm)
Features
Power Amplifier Circuit HDAM-SA3
Power Transformer Double Shielded Toroidal
Volume Electric
Bass / Treble / Mid / Balance Control yes / yes / - / yes
Source Direct yes
Frequency Response 5Hz - 50kHz
Total Harmonic Distortion 0.02% (20Hz - 20kHz, 8Ω)
Dumping Factor 100
Input Sensitivity: Phono input 2 mV / 47 kohm
Input Sensitivity: CD/Line/Recorder 220 mV / 20 kohm
Input Sensitivity: Power Amplifier input 1.6 V / 15 kohm
SN Ratio PHONO (MM): 87dBCD: 106dB

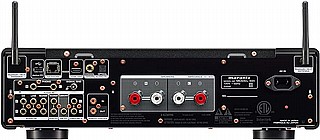

Terminal
Phono Input yes (MM)
Marantz Musical Phono EQ
Ext. Pre Input (Power Amp Direct) yes
Preout no
Analog Input (include Phono) / REC Out (RCA) 4 (PHONO, CD, LINE,RECORDER) / 1 (RECORDER)
Optical input 1
Coaxial input 1
HDMI 1 / 0 (ARC) PCM only
USB A 1 (Rear), Mass Storage Class5V/1A
Speaker Terminal SPKT-1+
Remote Control Bus Terminal yes (RC-5 In / Out)
Subwoofer Pre-out Low Pass Filter Selectable
40 Hz / 60 Hz / 80 Hz /100 Hz / 120 Hz
Control
App HEOS App
Remote Controller System Remote
Features (Amp and CD Player Control)
Others
Power Consumption 220W, 0.3W (Standby)
AC Inlet yes
Quick Start Guide Included
Packaging Dimensions (W x H x D in inches) 21" x 10" x 20.6"
Product Dimensions (W x H x D in inches) 17.4" x 5.1" x 17"
Cosmetic
Panel Color SG / BK
Front Center Panel Aluminum
Top Cover Steel
Edge Lighting yes (Dimmer)
Volume Knob Aluminum
Input Selector Aluminum
Bass/Treble/Balance/ REC Out Sel knobs Aluminum
Power button Aluminum
Chassis Material SECC
Bottom Layer Thicker double layer
