Digital Outputs Coaxial, Toslink operating at Sample Frequency (Fs) from 44.1 kHz to 192 kHz, 16 bit to 24 bit
Digital Input Sample Rates USB operating at Sample Frequency (Fs) from 44.1 kHz to 384 kHz, 16 bit to 32 bit, DSD 64, DSD 128 and DSD 256
BLUETOOTH operating at Sample Frequency (Fs) 44.1 kHz, 16 bit
AES/EBU, Coaxial, Toslink operating at Sample Frequency (Fs) from 44.1 kHz to 192 kHz, 16bit to 24 bit
Master Clock Jitter Below measurable levels
Digital Sampling Rates (Fs) 44.1 kHz to 768 kHz
Digital Filter 8x Oversampling Digital Filter
Digital/Analog Converters 2 channel AK4490EQ
BLUETOOTH CSR Bluetooth v 4.0 with aptX® low latency audio decoder
Analog Filter 3rd Order Bessel
Preamplifier Outputs Single – Ended RCA
Analog Input Single-Ended RCA x 2
Balanced XLR x 2
Analog Input Impedance 10 kΩ Unbalanced
20 kΩ Balanced
Power Amplifier Outputs 2 x 300W RMS in 8 Ω from 20Hz to 20KHz
2 x 450W RMS in 4 Ω from 20Hz to 20KHz
Circuit Type Solid State, Class A/B
Frequency Response 10Hz – 50KHz +/- 0.1dB (at 10db below rated output power)
Distortion (SMPTE-1M) < 0.5%
S/N Ratio >100dB, “A” Weighted
Protections Full short circuit, thermal, Ultrasonic, RF
Signal muting & current limiter
Control Trigger output 12.0 VDC x 1
IR control x 1
Communication Ethernet RJ45 full remote configuration interface
Wi-Fi 802.11 b/g/n
Power Input Configured at factory for either 110-120 or 220-240 VAC, 50-60 Hz
Power Consumption 950 Watts (4 ohm load at full output)

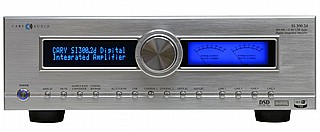

Finish Black powder coated matte chassis with silver or black aluminum faceplate
Weight 52 lbs
Dimensions 6.0″ H x 17.25″ W x 18.0″ D
