Circuit Type Push-Pull Ultra-linear Amplification in Pure Class AB1
Power Output 100 watts/channel

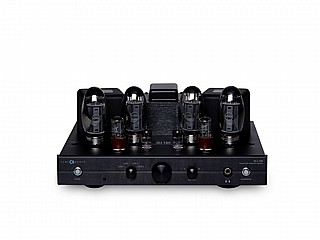

Tube Complement 2 – 6922 Input Buffer Preamp
2 – 6SN7 Pre-Driver/Phase Inverter
4 – KT150 Output Tubes
Input Sensitivity .45 volts for full output
Input Impedance 100,000 ohms
Noise and Hum 82db below rated output
Frequency Response 19Hz to 23Khz +/- .5db at full power output
Output Tabs 8 Ohms, 4 Ohms
Maximum Gain 34dB
Power Consumption 166 watts – Operation
83 watts – Standby

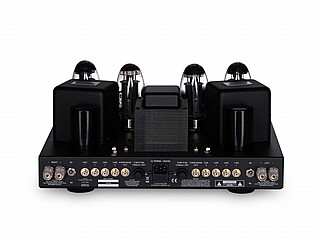

Inputs 4 Pairs Single-ended RCA
Outputs 1 Pair Speaker Posts (Switch for 4 and 8 Ohm Selectable)
1 Pair RCA for Subwoofer, ¼” Headphone
Output Polarity Non-Inverting (any input)
Warm-Up Time Approximately 3 minutes
Break-In Time 100 hours of music playing time

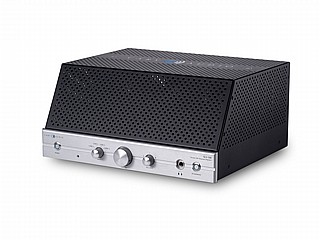

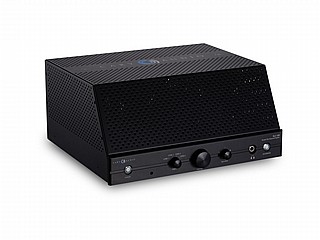

Finish Black Powder Coated Matte Chassis with Silver or Black Aluminum Faceplate and Knobs.
Dimensions 7.8″ H x 17.25″ W x 16″ D
Weight 42 lbs.
