The following section describes the SLP-98L basic specifications. The specifications are subject to change without notice or obligation.
Circuit Type Class A Triode
Output Rated 2 volts, 12 volts maximum
Gain 20dB – Line Stage
43 dB – Phono Stage (SLP 98P only)
Noise and Hum -88 dB below full output
Input Impedance 50,000 Ohms – Line
47,000 Ohms – Phono
Output Impedance 440 Ohms
Frequency Response 5 Hz to 163,000 Hz
Tubes 4 ea – 6SN7 Line Stage
2 ea – 12AX7 Phono Stage
2 ea – 12AU7 Phono buffer
Power Transformer(s) EI Laminate, 200% Duty Cycle
Resistors 1% Metal Film
Capacitors Polypropylene Film with hand soldered copper terminals (optional upgrades available)
Power Supply Capacitors 4 ea – 560µF @ 400 VDC
AC Cord 3 Conductor, Detachable
AC Power Requirements 117/234 VAC @ 50/60 Hz
Consumption 44 watts – Operation
Warm-Up Time 3 Minutes
Break-In Time 100 hours of playing time

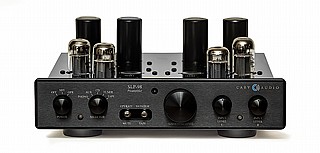

Finish Anthracite black chassis with silver or black aluminum faceplate
Weight 22 lbs
Dimensions 5″ H x 12.5″ W x 12″ D
