Specifications
Nominal Impedance
8 ohms
Recommended Amplifiers
10 to 150 watts
Frequency Response
28Hz-30kHz
Sensitivity
90 dB linear for 1 watt at 1 metre
Bass/Midrange
Bass and midrange frequencies are both covered by a single 6.5" (165mm) Kevlar coned unit, the Kevlar cone covers all frequencies up to 3Khz and slightly above.
Tweeter
The ProAc ribbon tweeter has a ribbon lighter than a human hair with rear chamber damping and alnico magnet.
Crossover
Finest components on dedicated dual layer circuit board. ProAc Multistrand oxygen free copper cable throughout. Split for optional Bi wiring or Bi amplification
Dimensions
Height: 22.4 inches Width: 10.4 inches Depth: 15.8 inches
Mode

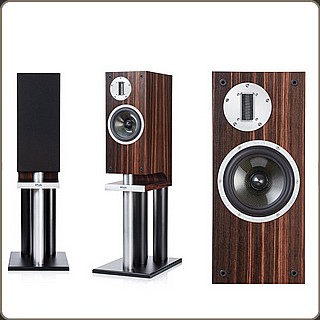

Stand mounting (Dedicated K1 stand available separately)
Grille
Acoustically transparent crimplene
Finish
Standard Finishes:
Black Ash, Mahogany, Cherry, Natural Oak, Silk White and Walnut.
Premium Finishes:
Rosewood, Ebony NEW Tamo Ash, Dark Eucalyptus
*Premium Finishes to order at extra cost*
Dedicated K1 stand available separately
