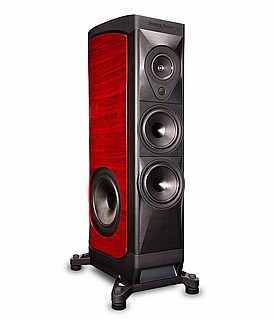

SYSTEM
3.5 way, sound field shaper variable geometry radiation, vibration cancellation optimized system, stealth reflex vented box, loudspeaker system.
LOUDSPEAKERS

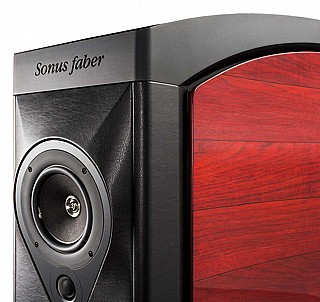

Tw: Beryllium dome diaphragm, Ø 30 mm
Md: Neodymium Magnet System, Ø 180 mm
W: sandwich cone structure, high-tech syntactic foam core and two external surface skins of coated cellulose pulp, 2 x Ø 260 mm

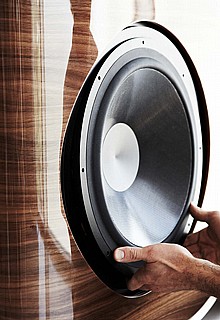

Sw: sandwich cone structure with high-tech syntactic foam core and two external surface skins in nano carbon fiber, Ø 380 mm
SOUND FIELD SHAPER
Tw: Neodymium dome driver, Ø 29 mm
Md: paper pulp/natural fiber blend cone driver, Ø 120 mm
CROSSOVER
80Hz - 250Hz – 2500Hz
FREQUENCY RESPONSE
18Hz – 36000Hz, Stealth reflex included
SENSITIVITY
92 db spl (2.83V/1m)
NOMINAL IMPEDANCE
4 ohm
POWER HANDLING
100W - 1KW, without clipping
DIMENSIONS (HXWXD)
1750 x 750 x 785 mm
68,8 x 29,5 x 31 in
WEIGHT
307 Kg ea – net weight
676 lb ea – net weight
SYSTEM
3.5 way, sound field shaper variable geometry radiation, vibration cancellation optimized system, stealth reflex vented box, loudspeaker system.
LOUDSPEAKERS
Tw: Beryllium dome diaphragm, Ø 30 mm
Md: Neodymium Magnet System, Ø 180 mm
W: sandwich cone structure, high-tech syntactic foam core and two external surface skins of coated cellulose pulp, 2 x Ø 260 mm
Sw: sandwich cone structure with high-tech syntactic foam core and two external surface skins in nano carbon fiber, Ø 380 mm
SOUND FIELD SHAPER
Tw: Neodymium dome driver, Ø 29 mm
Md: paper pulp/natural fiber blend cone driver, Ø 120 mm
CROSSOVER
80Hz - 250Hz – 2500Hz
FREQUENCY RESPONSE
18Hz – 36000Hz, Stealth reflex included
SENSITIVITY
92 db spl (2.83V/1m)
NOMINAL IMPEDANCE
4 ohm
POWER HANDLING
100W - 1KW, without clipping
DIMENSIONS (HXWXD)
1750 x 750 x 785 mm
68,8 x 29,5 x 31 in
WEIGHT
307 Kg ea – net weight
676 lb ea – net weight
