CONFIGURATION

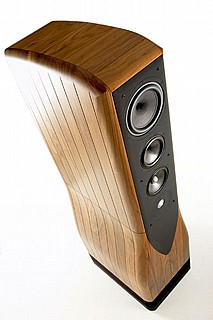

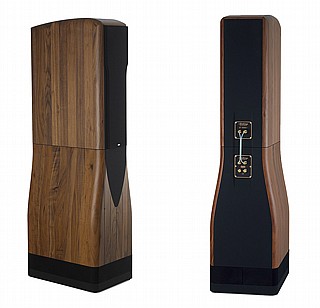

5-way Reversed Vertical Alignment FreeStanding
/
DRIVERS
1 Tweeter 32 mm SILVERSOFT™ dome NdFeB
motor
1 Midrange 130 mm ROHACELL® Poly-Ring
NdFeB motor
/
/
SIZE
1610 x 400 x 580 mm (H x Wx D)
WEIGHT
100Kg ( single piece )
/
SPEAKER ORIENTATION
Speakers should be tilted inward facing the
listener
TECHNICAL DATA
S AL ES N ETW OR K S UPPOR T W OR L D W ID E / EN GL I S H
C OL L EC T ION
21.10.2020 AcademySerendipity - Chario Audio
https://chariohifi.com/portfolios/academy_serendipity/?lang=en 5/7
1 Woofer 130 mm ROHACELL® Full-Apex™
Poly-Ring NdFeB motor
1 Woofer 170 mm ROHACELL® Full-Apex™
Poly-Ring NdFeB motor
2 Sub 320 mm Natural Fibres – 2 Waves
Surround HF motor
/
SENSITIVITY
93 dB SPL normalized to 1 m / 2.83Vrms /
decorrelated L/R pink noise in
ITU-R BS 1116-1 compliant listening room
/
LOW FREQUENCY CUT OFF
23 Hz @ -3dB referred to C4 WETS
/
OVERLAPPING POINTS
240/500/1250/1850 Hz
/
RATED IMPEDANCE
Modulus 4 Ω (min 3.0) Argument ±36°
/
LOW FREQUENCY LOAD
NRS 2π srVented IsobaricCompound
/
/
VENT GEOMETRY
Bidimensional Hyper-Exponential Hourglass
Type
/
FINISHING
Solid Walnut & HDF
/
/
LISTENING DISTANCE & LAYOUT
Optimum speaker-listener distance > 3.5m
A carpeted oor in front ofthe speakers is
recommended
/
SIDE AND BACK WALLS
Should be at least 1m away from the speaker
front bafe
/
SUGGESTED AMPLIFIERS IN NORMAL
AMPING 400 W / 4Ω
Run the cable from the power amplier to the
lower terminals ofthe
subwoofer binding post,then connect upper
terminals to the mid-high unit
binding post by means ofthe short cable with
banana plug provided with the
speakers.
/
SUGGESTED AMPLIFIERS IN BI
AMPING 200 W / 4Ω
Run the cable from the power amplier to the
lower terminals ofthe
subwoofer binding post leaving upper ones
idle. Repeat to connect the power
amplier to the mid-high unit binding post
(two terminals only)
/
WARRANTY
5 years Worldwide
/
SPARE PARTS AVAILABILITY
Allthe spare parts will be available for 15 years
after the
model will be discontinued.
