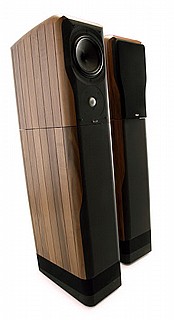

CONFIGURATION
3-way Reversed Vertical Alignment FreeStanding
/
DRIVERS
/
/
FINISHING
Solid walnut and hdf
/
SIZE
1220 x 240 x 440 mm (H x Wx D)
/
TECHNICAL DATA
21.10.2020 AcademySovran - Chario Audio
https://chariohifi.com/portfolios/academy_sovran/?lang=en 6/9
1 Tweeter 32 mm SILVERSOFT™ dome NdFeB
motor
1 Woofer 170 mm ROHACELL® Full-Apex™
Poly-Ring NdFeB motor
2 Subwoofer 200 mm Natural Fibres Poly-Ring
NdFeB motor
/
SENSITIVITY
90 dB SPL normalized to 1 m/2.83 Vrms/
de-correlated L/R pink noise in
ITU-R BS 1116-1 compliant listening room
/
LOW FREQUENCY CUT OFF
35 Hz @ -3 dB referred to C4 WETS
/
OVERLAPPING POINTS
100 Hz Doublet Xover //1180 Hz / LKR4
Derived (Δf=45°) MIDHIGH
/
RATED IMPEDANCE
Modulus 4 Ω (min 3.0) Argument ±36°
/
LOW FREQUENCY LOAD
Vented NRS Exponential Hourglass
/
VENT GEOMETRY
Bi-Dimensional Hyper-Exponential Hourglass
Type
WEIGHT
47Kg ( single piece )
/
SPEAKER ORIENTATION
Speakers should be titled inward facing the
listener
/
LISTENING DISTANCE & LAYOUT
Optimum speaker-listener distance > 3.0m
A carpeted oor in front ofthe speakers is
recommended
/
SIDE AND BACK WALLS
Should be at least 1m away from the speaker
front bafe
/

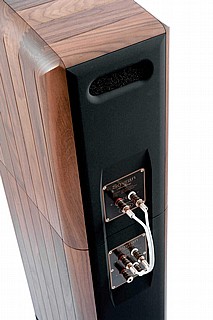

SUGGESTED AMPLIFIERS IN NORMAL
AMPING
180 W/ 4 Ω Average Power
Run the cable from the power amplier to the
lower terminals ofthe subwoofer
binding post,then connect upper terminals to
the mid-high unit binding post by
means ofthe short cable provided with the
speakers
/
SUGGESTED AMPLIFIERS IN BIAMPING
120 W/ 4 Ω Average Power
Run the cable from the power amplier to the
lower terminals
ofthe subwoofer binding post leaving upper
ones idle.
Repeat to connect the power amplier to the
mid-high unit
binding post (two terminals only )
/
WARRANTY
5 years Worldwide
