CONFIGURATION
/
/
FINISHING
TECHNICAL DATA
S AL ES N ETW OR K S UPPOR T W OR L D W ID E / EN GL I S H
C OL L EC T ION

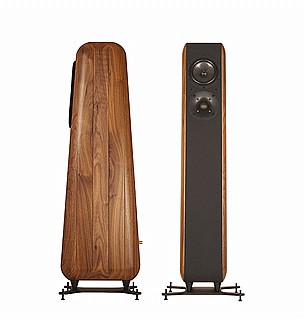

21.10.2020 Aviator Amelia - Chario Audio
https://chariohifi.com/portfolios/av_amelia/?lang=en 5/9
3-way Reversed Array
/
DRIVERS
1 Tweeter 38mm T38Waveguide
1 Midrange 130mmROHACELL® –Full-Apex™
Poly-Ring NdFeB motor
2 Woofer 130 mm ROHACELL® Full-Apex™
Poly-Ring NdFeB motor
/
SENSITIVITY
90 dB SPL normalized to 1 m/2.83 Vrms/
de-correlated L/R pink noise in
ITU-R BS 1116-1 compliant listening room
/
LOW FREQUENCY CUT OFF
48Hz @ -3dB /4Ω sr referred to C4 WETS
/
CROSSOVER FREQUENCIES
200Hz-1345Hz @ -6dB (4th Order)
/
SUGGESTED AMPLIFIER
Up to 150W/4Ω Average Power
/
RATED IMPEDANCE
Modulus 4Ω (minimum 2.8Ω @119Hz)
Argument ± 36°(20Hz-20kHz)
/
LOW FREQUENCY LOAD

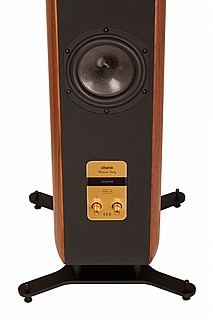

Down-Firing Vented
/
EAR LISTENING HEIGHT
Preferably on midrange axis
Solid walnut and hdf
/
SIZE
1015 x 190 x 335 mm (H x Wx D)
/
WEIGHT
20Kg ( single piece )
/
SPEAKER ORIENTATION
Speakers should be titled inward facing the
listener
/
LISTENING DISTANCE & LAYOUT
Minimum speaker-listener distance 2.5 m
A carpeted oor in front ofthe speakers is
recommended
/
WARRANTY
5 years Worldwide
/
SPARE PARTS AVAILABILITY
Allthe spare parts will be available for 15 years
after the
model will be discontinued.
