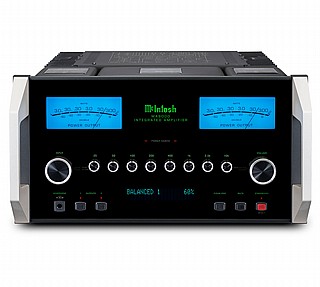

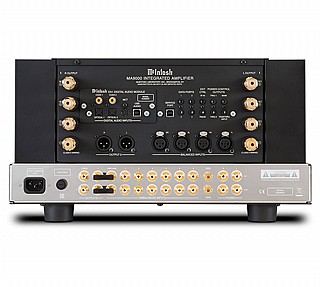

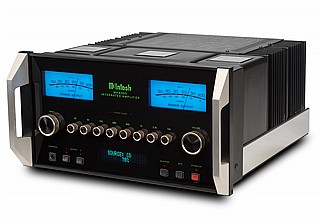

מגבר סטריאו INTEGRATED AMPLIFIER mcintosh דגם MA9000

מגבר סטריאו Integrated Amplifier מקינטוש דגם MA9000 2-Channel Integrated Amplifier 300 Watts x 2 channel 8-band tone control DA1 Digital Audio Module

חבילה מומלצת

צרו קשר

תיאור מוצר

חוות דעת

מאפיינים ושידרוגים:

פרטים נוספים:

  • אחריות: 24 חודשים
  • מספר תשלומים ללא ריבית:  18
לרכישת מוצר זה התקשרו לקבלת פרטים
  • +
  • -
visaisracardmastercarddinersamerican express
  • מחיר מיוחד מהבהב

מגבר סטריאו  Integrated Amplifier מקינטוש דגם MA9000

Specifications

ELECTRONIC SPECIFICATIONS

  • Power Output per Channel
    300 Watts
  • Number of Channels
    2
  • Speaker Impedance
    2, 4, or 8 Ohms
  • Rated Power Band
    20Hz to 20kHz
  • Total Harmonic Distortion
    0.005%
  • Dynamic Headroom
    1.8dB
  • Frequency Response +0,-0.5dB
    20Hz to 20kHz
  • Frequency Response, +0, -3dB
    10Hz to 100kHz
  • Sensitivity Phono (Moving Coil)
    0.30mV
  • Sensitivity Phono (Moving Magnet)
    3.0mV
  • Sensitivity High Level (Balanced / Unbalanced)
    0.6V/0.3V
  • Sensitivity (Power Amp input)
    1.7V
  • Signal To Noise Ratio (Moving Coil)
    82dB
  • Signal To Noise Ratio (Moving Magnet)
    84dB
  • Signal To Noise Ratio (High Level)
    98dB
  • Signal To Noise Ratio (Power Amp input)
    114dB
  • Input Impedance (Balanced / Unbalanced)
    10K/22K
  • Damping Factor
    >40
  • Maximum Output (Balanced / Unbalanced)
    8V Unbalanced
    16V Balanced

CONNECTIVITY

  • Balanced Input
    2
  • Unbalanced Input
    6
  • Phono Input Moving Coil
    1 (adjustable loading)
  • Phono Input Moving Magnet
    1 (adjustable loading)
  • Upgradeable Digital Audio Module
    Yes
  • Digital Coaxial Input
    2
  • Digital Optical Input
    2
  • Digital MCT (DIN) Input
    1
  • Digital USB Input
    1
  • Balanced Variable Output
    1
  • Unbalanced Fixed Output
    1
  • Unbalanced Variable Output
    1
  • Headphone Output
    1/4" High Drive with Headphone Crossfeed Director (HXD®)
  • Subwoofer Output
    0
  • AM/FM Tuner option
    No
  • Home Theater PassThru
    Yes
  • Unbalanced Analog Connector Type
    Premium gold-plated solid brass
  • Speaker Binding Post Type
    Patented Solid Cinch™ Speaker Binding Posts
  • Service Port
    1

DIGITAL AUDIO SPECIFICATIONS

  • Digital-to-Analog Converter (DAC) Type
    8-channel, 32-bit/384kHz PCM/DSD, Quad Balanced
  • Digital Coaxial Input Sample Rate
    24-bit/44.1kHz to 192kHz
  • Digital Optical Input Sample Rate
    24-bit/44.1kHz to 192kHz
  • Digital MCT (DIN) Input Sample Rate
    16-bit/44.1kHz (CD)
    DSD64 (SACD)
  • Digital USB Input Sample Rate
    32-bit/44.1kHz to 384kHz (PCM)
    DSD64, DSD128, DSD256, DXD352.8kHz, DXD384kHz

CONTROL

  • Tone Controls
    8-Band
  • Tone Bypass and Input Assign
    Yes
  • RS232 Control Input
    Yes
  • Power Control Output
    1 Main, 2 Trigger
  • Rear Panel Data Port
    4
  • Rear Panel IR Sensor Input
    Yes
  • Input Level Match
    Yes

GENERAL SPECIFICATIONS

  • Vacuum Tube or Solid State
    Solid State
  • Output Type
    Autoformer™
  • Output Meters
    Yes
  • Dual Layer Chassis
    Yes
  • Chassis Finish
    Polished stainless steel & black painted steel
  • McIntosh Monogrammed Heatsinks™
    Yes
  • Power Requirement
    120V, 50/60Hz, 6.6A
  • Standby Power Requirement
    <0.25 Watts
