Spec
Rated output 30W + 30W (8Ω),
60W + 60W (4Ω)
Input sensitivity /
input impedance PHONO (MM) : 2.5mV / 47kΩ
PHONO (MC) : 0.3mV / 100Ω
LINE : 180mV / 47kΩ
BAL.LINE : 180mV / 55kΩ
MAIN IN : 550mV / 47kΩ
Output voltage / output impedance PRE OUT: 1V / 600kΩ
Frequency response PHONO: 20Hz to 20kHz (±0.5dB)
LINE: 20Hz to 100kHz (within -3.0dB)
Total harmonic distortion 0.007% or less (8Ω, 1kHz)
0.06% or less (8Ω, 20Hz to 20kHz)
S/N ratio (IHF-A) PHONO (MM) : 91dB or more
PHONO (MC) : 75dB or more
LINE : 105dB or more
Volume adjustment New LECUA1000
Amplification circuit ODNF-u
Output configuration Bipolar 3-parallel push-pull
Damping factor 370
Max. amount of tone control BASS: ±8dB at 100Hz
TREBLE: ±8dB at 10kHz
Power supply 230V~(50Hz) / 115V~(60Hz)
Power consumption 330W,
230W (under no signal), 0.4W (at standby)
External dimensions 440 (W) x 193 (H) x 462 (D) mm
front side knob of 19mm and rear side terminal of 36mm included in depth
Net weight 29.0kg (main unit)

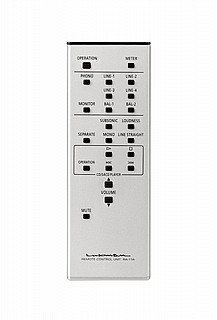

Accessories Remote control (RA-17A)

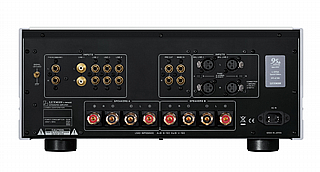

Speaker terminal Supported Y-lug terminal dimension Width of part a: 16mm or less
Width of part b: 7mm or more
* Connection may not be performed depending on the shape of the Y-lug terminal.
