Marantz CD6007 Specs
Compatibility
Supported Disc Types CD, CD-R, CD-RW
Supported Formats AIFF, FLAC, MP3, WAV, WMA
General
Frequency Response 2 Hz to 20 kHz 16-Bit (PCM)
2 Hz to 50 kHz -3 dB 24-Bit (PCM)
2 Hz to 50 kHz -3 dB (DSD)
Frequency Range 2 Hz to 20 kHz 16-Bit (PCM)
2 Hz to 96 kHz 24-Bit (PCM)
2 Hz to 100 kHz (DSD)
DAC AK4490 (192 kHz / 24-Bit)
Dynamic Range 100 dB (PCM)
110 dB (DSD)
Signal to Noise Ratio 110 dB
Max Sample Rate/Resolution 5.6 MHz / 1-Bit (DSD)
192 kHz / 24-Bit (PCM)
Total Harmonic Distortion (THD) 0.001% (24-Bit PCM)
0.0016% (16-Bit PCM)
0.001% (DSD)
Bit Rates 48 to 320 kb/s
Channel Separation 98 dB
Number of Channels 2
Maximum Output Voltage 2.4 Vrms (Stereo)
0.5 Vp-p (Digital Coaxial)

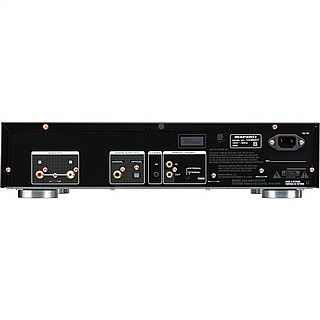

Connections
Audio Outputs 1 x TOSLINK Optical
1 x Digital Coaxial
1 x RCA Stereo (L/R)
1 x 1/4" / 6.35 mm Headphone
Audio Inputs 1 x USB Type-A
Other I/O 1 x 1/8" / 3.5 mm (IR) Input
1 x RCA (Remote) Input
1 x RCA (Remote) Output
Environmental
Operating Temperature 41 to 95°F / 5 to 35°C
Humidity 5 to 90%
Physical
Disc Capacity 1
AC Input Power 120 VAC, 60 Hz
Power Consumption 32 W (Typical)
0.3 W (Standby)
Dimensions (W x H x D) 17.3 x 4.1 x 13.4" / 43.9 x 10.4 x 34 cm
Weight 14.3 lb / 6.5 kg
Packaging Info
Package Weight 18.95 lb
Box Dimensions (LxWxH) 20 x 18.5 x 7"
