Spec
Supported discsm SACD, CD (CD-R, CD-RW, MQA-CD)
Supported sampling
frequencies USB input (PCM) : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz, 705.6 kHz, 768 kHz (16, 24, 32-bit)
USB input (DSD) : 2.8 MHz, 5.6 MHz, 11.2 MHz, 22.4 MHz (1-bit)
Coaxial / Optical input : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (16, 20, 24-bit)
Analog output voltage /
impedance Unbalanced : 2.4 V / 300 Ω, Balanced : 2.4 V / 600 Ω
For SACD / DSD : 2.3 V
Frequency response CD : 5 Hz to 20 kHz (+0, -1.0 dB)
SACD : 5 Hz to 38 kHz (+0, -3.0 dB)
USB : 5 Hz to 47 kHz (+0, -3.0 dB)
Total harmonic distortion CD : 0.0016 %, SACD : 0.0007 %, USB : 0.001 %
S/N ratio (IHF-A) CD : 122 dB, SACD : 125 dB, USB : 122 dB
D/A converter ROHM BD34301EKV (monaural mode) x 2
Power supply 230 V～(50 Hz) / 115 V～ (60 Hz)
Power consumption 37W
Dimensions 440(W) x 132(H) x 410(D) mm
front side knob of 2 mm and rear side terminal of 8 mm included in depth
Net weight 17.0 kg

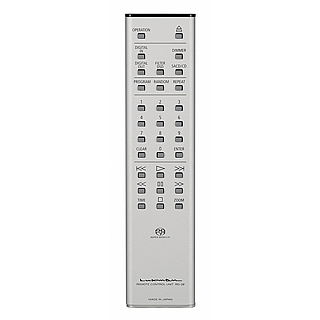

Accessories Remote control (RD-29), Power cable
