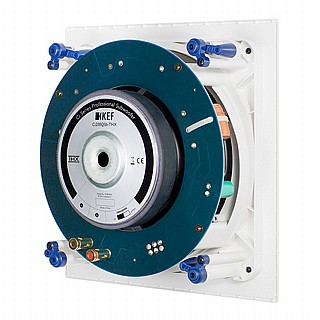

Model Ci200QSb -THX
Series Q Series
Nominal Impedance 6Ω - Passive Mode (Crossover "ON")
N/A - Active Mode (KASA500)
Sensitivity(2.83V/1m) 85dB - Passive Mode (Crossover "ON")
N/A - Active Mode (KASA500)
Frequency response (±6dB) 40Hz-100Hz - Passive Mode (Crossover "ON")
18Hz-140Hz - Active Mode (KASA500)
Crossover frequency 100Hz - Passive Mode (Crossover "ON")
N/A - Active Mode (KASA500)
Drive Units LF: 200mm (8 in.)
Recomended amplifier power 10-150W - Passive Mode (Crossover "ON")
KASA500 - Active Mode (KASA500)
Product external dimensions Diameter: 273 x 273 x 106 mm (10.75 x 10.75 x 4.17 in.)
Cutout dimensions H x W: 238 x 238 mm (9.37 x 9.37 in.)
Mounting depth from surface 101.6mm (4 in.)
Optional rough in frame RIF200S
Optional rear enclosure RNC130R
Weight" 3.3kg (7.28 lbs)
