Specifications
TYPE
Front-firing active driver, down-firing passive
ACTIVE DRIVER SIZE & MATERIAL
12 in., 300mm long-throw, carbon fibre cone with inverted carbon fibre centre cap
PASSIVE RADIATOR SIZE & MATERIAL
12 in., 300mm Carbon, carbon flat cone structure, steel chassis
LOW FREQUENCY EXTENTION
-6 dB at 19Hz (in Room)

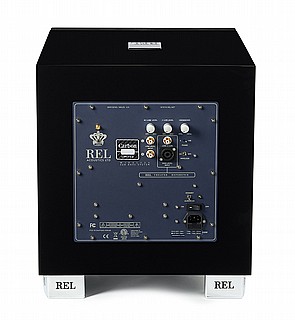

INPUT CONNECTORS
High Level Neutrik Speakon, Low Level stereo RCA, LFE RCA, and LFE XLR
OUTPUT CONNECTORS
High Level Neutrik Speakon, LFE RCA, and LFE XLR
POWER OUTPUT
800 watts (RMS)
AMPLIFIER TYPE
NextGen5 Class D
WIRELESS CAPABILITY
Airship Wireless Required (sold separately)
Protection System
FULLY ELECTRONIC SET SAFE
Yes
D.C. FAULT
Yes
OUTPUT SHORT
Yes
MAINS INPUT VOLTAGE
220-240 volts, 110-120 volts for certain markets
FUSES
5 Amp 220 volts operation, 9 Amp 120 volts operation
Dimensions
W X H X D
17 x 18 x 21.25 in. (430 x 455 x 539 mm)
NET WEIGHT
85.3 lbs. (38.7 kg)
FINISH
Piano Black Lacquer, 8 coats
Supplied Accessories
MAINS LEAD
Yes
NEUTRIK SPEAKON
Yes (10 Meters Nominal)
INTERCONNECT
USERS MANUAL
Yes
