Specifications
TYPE
Front-firing active woofer, down-firing passive radiator
ACTIVE DRIVER SIZE & MATERIAL
10 in., 250mm long-throw, die cast aluminium chassis
PASSIVE RADIATOR SIZE & MATERIAL
12 in., 300mm
LOW FREQUENCY EXTENTION
-6 dB at 20hz

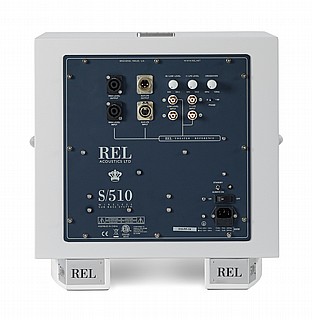

INPUT CONNECTORS
High Level Neutrik Speakon, Low Level stereo RCA, LFE RCA, LFE XLR
OUTPUT CONNECTORS
Hi Level Neutrik Speakon, LFE RCA, LFE XLR
POWER OUTPUT
500 watts (RMS)
AMPLIFIER TYPE
NextGen3 Class D
WIRELESS CAPABILITY
Yes- REL AirShip system [required]. Sold separately.
Protection System
FULLY ELECTRONIC SET SAFE
Yes
D.C. FAULT
Yes
OUTPUT SHORT
Yes
MAINS INPUT VOLTAGE
220-240 volts, 110-120 volts for certain markets
FUSES
5 Amp semi delay 220 volts operation 9 Amp semi delay 120 volts operation
Dimensions
W X H X D
15.7 x 16 x 18.25 in., (400 x 410 x 464 mm) Add 1.75in (44.5mm) in depth when using Hi Level connector
NET WEIGHT
70 lbs. (31.7 kg)
FINISH
Piano Black Lacquer, White Lacquer, 10 coats
Supplied Accessories
MAINS LEAD
Yes
NEUTRIK SPEAKON
Yes
INTERCONNECT
USERS MANUAL
Yes
