Specifications
TYPE
Front-firing active driver, down-firing passive
ACTIVE DRIVER SIZE & MATERIAL
12 in., 300mm long-throw, Continuous CastAlloy™ cone structure, cast chassis
PASSIVE RADIATOR SIZE & MATERIAL
12 in., 300mm Carbon/Carbon flat cone structure, steel chassis
LOW FREQUENCY EXTENTION
-6dB at 19 Hz

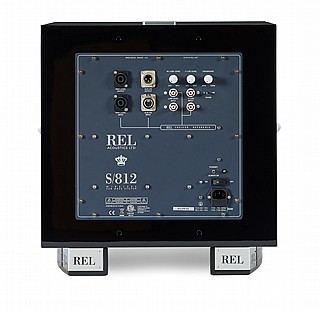

INPUT CONNECTORS
High Level Neutrik Speakon, Low Level stereo RCA, LFE RCA, LFE XLR
OUTPUT CONNECTORS
High Level Neutrik Speakon, LFE RCA, LFE XLR
POWER OUTPUT
800 watts (RMS)
AMPLIFIER TYPE
NextGen5 Class D
WIRELESS CAPABILITY
Yes- REL AirShip system [required]. Sold separately.
Protection System
FULLY ELECTRONIC SET SAFE
Yes
D.C. FAULT
Yes
OUTPUT SHORT
Yes
MAINS INPUT VOLTAGE
220-240 volts, 110-120 volts for certain markets
FUSES
5 Amp 220 volts operation, 9 Amp 120 volts operation
Dimensions
W X H X D
17.5 x 18 x 20 in. (430 x 455 x 514 mm)
NET WEIGHT
75 lbs. (34 kg)
FINISH
Piano Black Lacquer, White Lacquer, 8 coats
Supplied Accessories
MAINS LEAD
Yes
NEUTRIK SPEAKON
Yes (10 Meters Nominal)
INTERCONNECT
USERS MANUAL
Yes
