Specifications
TYPE
Front-firing active driver, down-firing passive
ACTIVE DRIVER SIZE & MATERIAL
10 in. FibreAlloy™, 254mm long-throw, inverted alloy dust cap, steel chassis
PASSIVE RADIATOR SIZE & MATERIAL
10 in., 254mm long throw, inverted dust cap
LOW FREQUENCY EXTENTION
-6dB at 27 Hz

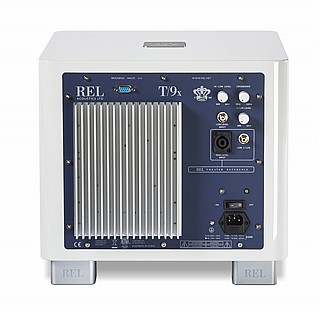

INPUT CONNECTORS
High Level Neutrik Speakon, Low Level single RCA, LFE RCA
OUTPUT CONNECTORS
N/A
POWER OUTPUT
300 watts (RMS)
AMPLIFIER TYPE
Class A/B
WIRELESS CAPABILITY
Arrow (Optional), Zero Compression Single Large Scale Integrated Chip
Protection System
FULLY ELECTRONIC SET SAFE
Yes
D.C. FAULT
Yes
OUTPUT SHORT
Yes
MAINS INPUT VOLTAGE
220-240 volts, 110-120 volts for certain markets
FUSES
3.15 Amp semi delay 230 volts operation, 6.3 Amp semi delay 115 volts operation
Dimensions
W X H X D
14.5 x 13.4 x 15.5 in., (370 x 340 x 393 mm)
NET WEIGHT
45.5 lbs. (20.6 kg)
FINISH
High Gloss Black, High Gloss White, 5 coats
Supplied Accessories
MAINS LEAD
Yes
NEUTRIK SPEAKON
Yes (10 Meters Nominal)
INTERCONNECT
USERS MANUAL
Yes
