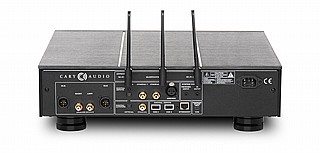

סטרימר DAC מבית DMS-700 NETWORK AUDIO PLAYER CARY AUDIO

ABOUT THE DMS-700 NETWORK AUDIO PLAYER

When we set out to design the DMS-600, our goal was simple. To make the absolutely best sounding network audio streamer on the planet, far exceeding its price point and beyond, period. As evident by the following the DMS-600 garnered, it’s clear we achieved that goal in spades! In addition to sounding amazing, the DMS-600, like all DMS products, functioned robustly, was feature packed, stable, operated easily, and had the best display screen in the industry.

So, how does one top that? It was not easy, but the efforts have paid off. Prior to the DMS-700, all DMS products used a voltage output DAC chip(s). The new DMS-700 uses AKM’s latest flagship DAC, the AK4499EQ. The AK4499EQ uses a switched resistor architecture with current output. This alone required a complete rethink of the DMS digital circuitry. The switched resistor architecture can sound much more analog like while revealing copious amounts of detail yet retaining a very natural, smooth, and musical response. This type of DAC is more complex to integrate but the rewards can be significant with proper implementation. As such, we also incorporated a FPGA chip that works in conjunction with the switched resistor DAC resulting in an extremely coherent and smooth sound. Of course, the digital circuitry alone does not account for the overall sound. Cary Audio is renowned for designing spectacularly musical analog circuits. Rather than using a simple analog buffer stage post DAC chip, we designed a full no compromise in-house analog stage coupled to massive power supplies for both the digital and analog stages. Any DAC audio component is a sum of its parts. As important as the DAC chips themselves are, it’s the designed pre and post DAC chip that gives our Cary Audio DMS products their famous signature sound.

Aside from sound, the DMS-700 is packed with new and improved features like native playback of  DSD512, PCM 32/768, MQA 16x full decoder, Roon Ready, TIDAL, Qobuz, Spotify and Spotify Connect, vTuner,  (3)USB-A (1)SD Card inputs with built-in NAS Drive capability, (2)Coaxial (1)Optical outputs capable of DSD and PCM 384kHz output. Multisource back and forth playback from all network, internet, USB & SD input sources without playback interruption. Multisource playlist creation, Pure Audio mode, Sleep timer, Crytek Oscillator Clock, 7 independent regulated power supplies, and a new LCD screen with twice the resolution of previous DMS models, at 1600 x 1200 dpi.

Cary Audio is not known for change for the sake of change alone. The new DMS-700 represents a significant step forward in network and internet music streaming sound reproduction, while further solidifying the Cary Audio DMS platform and range of products as the absolute best there is for network audio.

Download the free iOS and Android Control APPS for the DMS-700.

Experience MQA over TIDAL. Learn more here. Sign up for TIDAL HiFi here.

The following section describes the DMS-700 basic specifications. The specifications are subject to change without notice or obligation.

Master Clock Jitter         Below measurable levels

Digital Sampling Rates (Fs)          44.1 kHz to 768 kHz

Digital Filter      32-Bit 8x Oversampling Digital Filter

Digital/Analog Converters          1 – 4 channel AK4499EQ for true balanced output

BLUETOOTH      CSR Bluetooth v 4.0 with aptX® HD for 24 Bit / 48 kHz high definition audio decoder

Analog Filter      3rd Order Bessel

Analog Outputs Balanced XLR, Single – Ended RCA

Digital Outputs  Coaxial, Toslink operating at Sample Frequency (Fs) from 44.1 kHz to 384 kHz, 16 bit to 24 bit, DSD64, DSD128

Digital Inputs     USB x 3, SD Card x 1

BLUETOOTH x1

AES/EBU x1, Coaxial x2, Toslink x1

Digital Input Sample Rate           USB operating at Sample Frequency (Fs) from 44.1 kHz to 705.6 kHz, 16 bit to 32 bit, DSD 64, 128, 256 and 512.

BLUETOOTH Sample Frequency (Fs) 48 kHz, 24bit.

AES/EBU, Coaxial, Toslink operating at Sample Frequency (Fs) from 44.1 kHz to 384 kHz, 16 bit to 24 bit, DSD64, DSD128

Control Trigger input 12VDC x1

IR control x1

Communication Ethernet RJ45 full remote configuration interface

Wi-Fi 802.11 b/g/n/ac support MU-MIMO

Power Input      Configured at factory for either 110-120 or 220-240 VAC, 50-60 Hz

AC Power Requirements 45 Watts

Finish    Custom aluminum chassis and faceplate available in either Silver or Black anodized finish

Weight 28 lbs

Dimensions       3.75″ H x 17.25″ W x 16.25″ D

AUDIO (LPCM)

Frequency Range           2 Hz – 22 kHz (44.1 kHz)

Amplitude Linearity        0.1 dB (20 Hz – 20 kHz)

Phase Linearity  3 degrees (20 Hz – 20 kHz)

Dynamic Range 124 dB (1 kHz)

Signal-to-Noise Ratio     127 dB (1 kHz)

Channel Separation        107 dB (1 kHz)

Total Harmonic Distortion          0.0001% (1 kHz)

Audio Output Level        2.0V RMS (220 Ω output impedance) for Volume at 0.0dB

3.0V RMS (220 Ω output impedance) for Volume at +8.0dB

Balanced XLR Output     +/- 2.0V RMS (440 Ω output impedance) for Volume at 0.0dB

+/- 3.0V RMS (440 Ω output impedance) for Volume at +8.0dB

NETWORK, USB, SD CARD PLAYBACK

Playback Format Supply  .dsf, .dff (DSD64, 128, 256, 512), .aif, .aiff, .alac, .flac, .m4a, .mp4, .wav, .ape, .mp3, .aac, .wma, .ogg, .asf

Frequency Range           2 Hz – 100 kHz

Signal System    16, 20, 24, & 32 bit PCM and 1 bit DSD

Sampling Frequency       44.1 kHz to 384 kHz PCM and 2.822MHz – 22.5792 MHz DSD

Dynamic Range 124 dB

DSD System Clock          Frequency 22.5792 MHz

Signal-to-Noise Ratio     127 dB

Audio Output Level        2.0V RMS (220 Ω output impedance) for Volume at 0.0dB

3.0V RMS (220 Ω output impedance) for Volume at +8.0dB

Balanced XLR Output     +/- 2.0V RMS (440 Ω output impedance) for Volume at 0.0dB

+/- 3.0V RMS (440 Ω output impedance) for Volume at +8.0dB

SPDIF PLAYBACK; COAXIAL, TOSLINK, AES/EBU (lPCM)

Frequency Range           2 Hz – 100 kHz

Signal System    16, 20, and 24 bit

Sampling Frequency       44.1 kHz to 384 kHz PCM, DSD64, DSD128

Dynamic Range 124 dB

System Clock     Frequency 22.5792 MHz

Signal-to-Noise Ratio     127 dB

Audio Output Levelb      2.0V RMS (220 Ω output impedance) for Volume at 0.0dB

3.0V RMS (220 Ω output impedance) for Volume at +8.0dB

Balanced XLR Output     +/- 2.0V RMS (440 Ω output impedance) for Volume at 0.0dB

+/- 3.0V RMS (440 Ω output impedance) for Volume at +8.0dB
