Spec
●Turntable drive section
Drive system Belt drive system
Motor Brushless DC motor with PID control
Material Machined aluminum, Surface finish: Diamond cut
Revolution 33 1/3rpm, 45rpm, 78rpm (3 speeds selectable)
Revolution adjustment range ±6% (each rotation speed adjustable independently)
Wow and flutter 0.04% or less (W.R.M.S.)
Weight 5.2kg (Platter)
●Tonearm section
Type Static balanced, S shaped, universal type
Bearing Concealed vertical knife edge
Effective length 256mm
Overhang 16mm
Tracking error angle +1.07° to -1.52°
Applicable cartridge weight 4 to 11g (including headshell 17 to 24g)
Adjustable height range 22mm
Anti-skating 0 to 4g
●Main unit
Power source 230V～50Hz / 115V～60Hz
Power consumption 5W

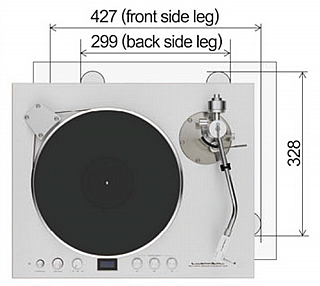

Dimensions 491(W) × 128(to the upper surface of the platter) (H)× 399(D) mm
Net weight 24.8kg (main unit), 26.4kg (with dust cover)
Accessories Platter, Headshell (D.U.C.C lead wire included) Rubber mat, Rubber belt, Platter mount handle (2 pieces), EP adaptor, Counterweight, Anti-skating weight, Arm adjustment hex wrench set (2 types), Flathead screwdriver for rotation speed adjustment Arm base removal hex wrench, Phono cable (DIN→ RCA : already installed in the unit), Power cable
*D.U.C.C. is a registered trademark of Mitsubishi Cable Industries, Ltd.
