It takes more than a great driver to create a great satellite speaker,
so the E301 satellite was designed from the start as a single perfectly
balanced system with the crossover,
cabinet and drivers working together in harmony.
To eliminate secondary radiation and cabinet coloration,
the enclosures are heavily reinforced with internal ribbing and
damping technologies to ensure sonic accuracy with no unwanted resonances.
The low diffraction cabinets are carefully engineered to minimise scattering,
so nothing subtracts or adds to the sound being reproduced.
Enjoy the extreme pleasures of experiencing true hi-fi sound quality
from your music and movies with
our new E Series home theatre speaker system.

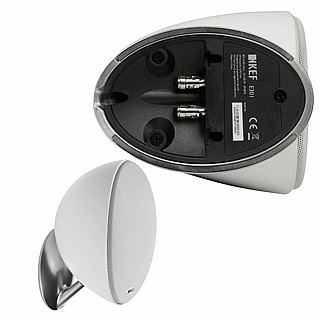

Model E301
Specifications:
Two-way bass reflex
Drive units: Uni-Q driver array:
HF: 19mm (0.75in.) vented aluminium dome
MF: 115mm (4.25in.) aluminium
Frequency range (-6dB) 80Hz – 45kHz
Frequency response (±3dB) 90Hz - 33kHz
Amplifier requirements 10 - 100W
Maximum output (SPL) 109dB
Nominal impedance 8Ω (min. 3.4 Ω)
Amplifier requirements 10 - 100W
Maximum output (SPL) 109dB
Dimensions
(H x W x D)
(with grille and base)
E301 260 x 136 x 159 mm (10.2 x 5.4 x 6.3 in.)
