Specifications
Specifications are subject to change without notice
Frequency Response
47–25kHz ±3dB
Recommended Amplifier Power
20—200 watts per channel
Horizontal Dispersion
80°
Vertical Dispersion
80°
Sensitivity
90 dB/2.83 volts/meter
Impedance
4 Ohms Compatible with 4, 6, or 8 Ohm rated amplifiers.
Crossover Frequency
2,600 Hz

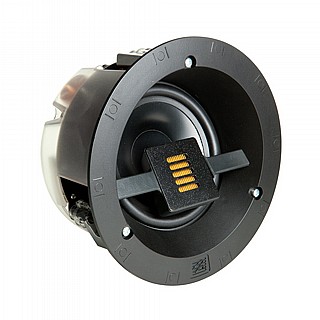

High Frequency Transducer
1" x 1.4" (2.6cm x 3.6cm) Folded Motion Transducer with 5.25" x 1.75" (13.3cm x 4.4cm) diaphragm.
Low Frequency Transducer
6.5" (16.5cm) aluminum cone with cast aluminum basket. Concave dust cap.
Components
Custom air core coil inductors. Polyester film capacitors in series and low DF electrolytic capacitors in parallel. Overall system thermal/cur- rent protection.
Inputs
Push style binding posts with banana jack.
Weight
5 lbs. (2.3 kg)
Cut-Out Dimensions
8.2" dia.
(20.8 cm dia.)
Projection From Wall Surface
.125" (.3cm)
Depth Behind Wall Surface
5.2" (13.2 cm)
