Specification
Design: Three-way bass reflex
Drive Units: Uni-Q Driver Array:
HF: 19mm (0.75 in.) vented aluminium dome with MAT
MF: 100 mm (4 in.) aluminium cone
LF: 2 x 165 mm (6.5 in.) hybrid aluminium cone
Frequency Range (-6dB): 39 Hz - 20 kHz
Typical In-room Bass Response (-6dB): 28 Hz
Frequency Response (+3dB): 46 Hz - 20 kHz
Crossover Frequency: 440 Hz, 2.3 kHz
Amplifier Requirement: 15 - 200 W
Sensitivity (2.83V/1m): 87 dB
Harmonic Distortion (90dB, 1m): <2% 35 Hz and above <1% 38 Hz - 20 kHz
Maximum Output: 110 dB
Impedance: 4 Ω (min. 3.2 Ω)
Weight: 18.4 kg
Dimensions (H x W x D) with Terminal: 950 x 210 x 315 mm
Dimensions (H x W x D) with Terminal & Plinth: 1001 x 317 x 315 mm

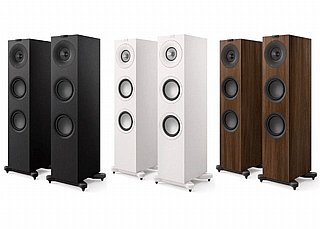

Finishes: Satin Black / Satin White / Walnut
