System
Frequency response
38 Hz - 30 kHz ± 6 dB
Recommended amplifier power
20 - 250 W
Power handling (IEC)
125 W continuous, 500 W peak
Sensitivity
91 dB (1 W @ 1 m)
Impedance
8 Ω
Components
Low frequency dual concentric
1 x 12" (300 mm) paper pulp cone with twin roll impregnated fabric surround, 52 mm (2") edge wound voice coil
High frequency dual concentric
1 x 1.3" (33 mm) aluminium/magnesium alloy dome with edge-wound voice coil
Crossover
Frequency
1.2 kHz
Type
Bi-wired, hard wired passive, low loss 2nd order low pass, 1st order high pass
Adjustment
±3 dB over 1 kHz to 30 kHz shelving,
2 dB to -6 dB per octave
over 5 kHz to 30 kHz slope
User controls
treble roll off, treble energy
Enclosure
Type
Twin distributed port

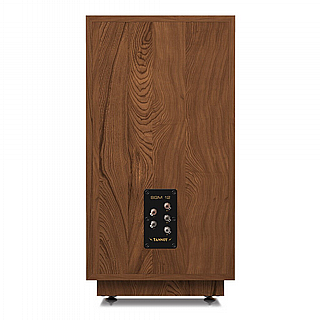

Connectors
5 x 4 mm 24ct Tannoy customized binding posts
Dimensions HWD
447 x 308 x 863.3 mm (17.6 x 12.1 x 40")
Net weight
29.4 kg (64.8 lbs)
Construction
19 mm (3/4") Particle Board, MDF with plywood internal bracing - heavily damped
Finish
Walnut veneer and high acoustic transparency nylon grill cover
