רסיבר קולנוע Integra DRX 8.4

Product highlights:

Power and processing:

• 11-channel amplifier

  • 150 watts per channel into 8 ohms (20-20,000 Hz) at 0.08% THD, with 2 channels driven (FTC Power Output Rating)
  • symmetric Class AB amplifier design
• two ESS Sabre ES9026PRO 32-bit Hyperstream® II DACs provide high dynamic range and low distortion
• Integra engineered chassis and audio signal path for optimum noise reduction and signal clarity

• Dolby® and DTS® surround sound decoding

  • Dolby Atmos and DTS:X processing for use with in-ceiling or "height" speakers for ultra-enveloping home theater sound
• IMAX® Enhanced reproduces the full dynamic range of specially encoded IMAX soundtracks from compatible sources

• THX Certified Select™ theater reference sound

  • ensures you get the same reference volume level of a commercial theater in rooms where the screen-to-seat distance is about 12 feet
  • includes a variety of THX listening modes for movies, music, and gaming
• Auro-3D surround mode with room calibration available via a future firmware update

• Dirac Live speaker calibration system helps fine-tune your system to best match your room's acoustics

  • microphone included for basic room correction via Integra mobile app
  • 3rd-party USB mic (sold separately) allows more advanced calibration with Dirac Live desktop/laptop application for Mac® or PC
  • Dirac Live Bass Control ready (single or multi) as an optional user upgrade
• Speaker Combo mode implements the precise crossover values for specific new Klipsch speakers, maximizing sound quality

Streaming music options:

• plays high-resolution digital music files via USB storage device or a networked computer (PCM up to 24-bit/192kHz resolution; DSD up to 11.2 MHz)

• built-in Wi-Fi for listening to music from a networked PC, free internet radio, and music services

  • includes support for Pandora®, TIDAL, Amazon Music HD, and Spotify® (subscription required for some services)
• compatible with Sonos Port — receiver turns on automatically and sets the right input when selected in the app
• Apple AirPlay 2 lets you easily stream from an iPhone® or iPad® and ask Siri to play Apple Music®
• Chromecast built-in for streaming music from the cloud with compatible mobile apps

• built-in Bluetooth 4.2 for wireless music listening with smartphones, tablets, and compatible computers

  • Bluetooth transmission lets you send audio from the receiver to Bluetooth-enabled headphones
  • supports high-quality AAC, aptX®, and aptX HD audio streaming

• works as a Roon player (requires subscription and Roon Core running on your network)

  • Roon Core is media server software that runs on your computer, NAS drive, or other compatible hardware
• DTS Play-Fi® multi-room music listening via Integra Music Control App
• works with Amazon Alexa and Google Assistant voice control assistants

HDMI features:

• HDMI audio/video switching: 7 in, 3 out, including 1 front-panel input

  • 6 inputs and 2 outputs support 8K/60Hz and 4K/120Hz video (HDMI 2.1)
  • 1 front-panel input supports 4K/60Hz video (HDMI 2.0)
• HDCP 2.3 technology ensures compatibility with Ultra HD sources and TVs

• HDR-compatible for extended picture contrast and brightness with compatible TVs and HDR-encoded content

  • supports HDR10+, Dolby Vision™, and HLG (Hybrid Log Gamma)

• supports ARC (Audio Return Channel) and eARC (Enhanced Audio Return Channel)

  • eARC receives uncompressed surround sound signals including Dolby Atmos and DTS:X via the HDMI connection with your compatible TV

• gaming-optimized video processing technologies for a smooth, lag-free gaming experience

  • Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), and Quick Frame Transport (QFT) reduce or eliminate lag and frame tearing

Multi-room audio:

• three-room/three-source output
• Zone 2 and Zone 3 stereo preamp outputs for use with optional external receivers or amplifiers
• Zone 2 and monitor HDMI output

• powered 2nd-room and 3rd-room output

  • allows up to 7.4-channel sound in main room when all three zones are in use

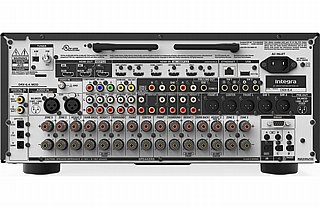

Other connections:

• digital audio inputs: 3 Toslink optical, 2 coaxial
• 4 analog stereo RCA line-level audio inputs
• MM (moving magnet) phono input for connecting a turntable
• 2 composite video inputs
• 1 component video input

• 11.4-channel preamp outputs for connection to an optional external amplifier

  • different signals are output from the subwoofer 1 and subwoofer 2 terminals
  • the same signals are output from "A" and "B" of subwoofer 1, and the same specification applies to subwoofer 2
• 2 powered output channels selectable for driving independent passive subwoofers

• balanced XLR connections

  • 1 audio input
  • Front L/C/R outputs
  • 2 independent subwoofer outputs
• USB port for audio playback from USB flash drives (rear-panel)

• outputs for 15 speakers (Front L/R, Center, Surround L/R, Surround Back L/R, Height 1 L/R, Height 2 L/R, Zone 2 L/R, Zone 3 L/R)

  • receiver can power a maximum of 11 channels at once
• full-sized front-panel headphone jack
• RS-232C and IR (infrared) remote connections for use with optional third-party controllers
• 12-volt trigger outputs for sending on/off commands to optional external components
• removable power cord

Dimensions and warranty:

• 17-3/16"W x 7-13/16"H x 19-7/16"D (10-1/8" w/ antennas extended)
• weight: 49.6 lbs.
