Technical Specifications
Power Amplifier
Number of Powered Channels 7
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) 100 W
Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) -
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 140 W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 200 W
70% Guarantee Yes
Discrete Power Amplifier Yes
Amplifier Topology Class A/B
Current Feedback Topology Yes
Bi-Amp Drive assignable
Multichannel Surround Technologies
DTS DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X
Dolby Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
Other
Max Number of Processing (Preamp) Channels 7.1

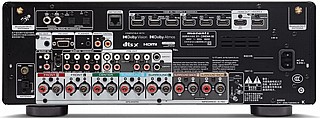

Inputs/Outputs
Composite In / Out 0/0
Component In / Out 0/0
HDMI In / Out 6 / 2
Multi-Room Video Out via HDMI No
Analog In / Fixed Level Out 4 in / 0 out
Phono (MM) In Yes
Digital In: Optical / Coaxial 2 / 2
Multi-Room Out: analog / digital 1 / 0
Multichannel Preamp Out 7.2
Subwoofer Out 2
7.1 multichannel input No
Number of Speaker Terminals 7
Speaker A / B assignable
Multi-Room Speaker Terminal assignable
Front Inputs USB-A
USB Audio / Made for iPod / Made for iPhone Yes / No / No
AM/FM Tuner Yes
HDMI
Total HDMI Inputs / No. Support 8K 6 / 3
HDCP2.3 support Yes
HDMI Outputs: Main / Zone 2 / 0
Analog to HDMI Video Conversion No
HDMI Upscaling 1080P/4K to 8K
Max resolution @ framerate 8K/60Hz, 4K/120Hz
Audio Return Channel ARC, eARC
Video Dynamic Range HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
ALLM (Auto Low Latency Mode) Pass-through for gaming Yes
Variable Refresh Rate / Quick Frame Transport Yes / Yes
HDMI Pass-Through in Standby Mode Yes
CEC Yes
DSD Audio over HDMI No
Auto LipSync Yes
Performance Technologies
Acoustic / Room Correction
Music File Support
Lossy Formats MP3 / WMA / AAC
Lossless formats FLAC HD 192/24 / WAV 192/24 / ALAC 192/24
DSD Audio 2.8 MHz / 5.6MHz
Gapless Playback FLAC, WAV ,ALAC ,DSD
Compressed Audio Enhancer: MDAX2 Yes
Network Audio Sharing Yes
Streaming Services
HEOS Multi-room and Streaming Yes
AirPlay Audio Streaming AirPlay 2
Internet Radio TuneIn
Spotify* Spotify Connect
Pandora Yes
SiriusXM Yes
Other Streaming Services * Amazon Music HD/
Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / SoundCloud / Mood Mix
Roon tested Yes
Network Connectivity
Ethernet Ports Yes
Wi-Fi (include version / band) Yes
Bluetooth (Include version) Yes
Bluetooth Re-transmit for Bluetooth headphones Yes
Smart Home Integration And Control
Voice Assistant Compatibility Alexa / Google Voice Assistant / Apple HomePod
App for Smart Phones & Tablets (iOS & Android) Marantz AVR Remote App, HEOS
HEOS Multi-Room Integrated Yes
HEOS Link Compatibility: IR/ IP Yes / Yes
Multi-Room zones 2
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog 2 Ch / 2Ch / Yes / Yes
Zone Audio Output: Speaker / Preout Yes / Yes
Zone HDMI Output from HDMI Source No
Control Connectivity IP Control / RS232 Control / Web Control / App Control
IR Flasher In Yes
Marantz Remote Bus Yes
DC Trigger Output 1
HDMI Diagnostics Yes
Others
Front Display port hole OLED
GUI Languages 3
Setup Assistant Yes
Smart Select on Remote Yes
Firmware Update by Network / USB Yes / Yes
ECO Mode Yes
Auto Power off Yes
Sleep Timer Yes
General
Available Colors Black
Metal Front Panel No
System Remote Control RC049SR
Power Consumption in W 650
Power Consumption No-Sound (ECO on/off) in W 45 / 75
Standby Consumption in W 0.2
CEC Standby Consumption in W 0.5
Network Standby Consumption in W Less than 2.0
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in inches
Antenna:Vertical :(W x D x H) in inches
W/o Antenna:(W x D x H) in inches 17.4 x 13.9 x 6.5
17.4 x 13.9 x 9.3
17.4 x 13.5 x 6.5
Weight in lbs. 24
What's in the box Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, card board microphone stand, 2 External Detachable Antenna, AC cord
