Technical Specifications
Power Amplifier
Number of Powered Channels 9
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) 110 W
Power Output (8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive) -
Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) 150 W
Power Output (6 ohm, 1 kHz, 10% 1ch Drive) 220 W
70% Guarantee Yes
Discrete Power Amplifier Yes
Amplifier Topology Class A/B
Current Feedback Topology Yes
Bi-Amp Drive assignable
Multichannel Surround Technologies
DTS DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X
Dolby Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
Other IMAX Enhanced, Auro-3D, 360 Reality Audio, MPEG H, Multichannel Stereo
Max Number of Processing (Preamp) Channels 11.4

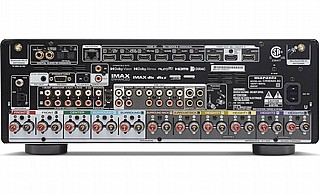

Inputs/Outputs
Composite In / Out 0/0
Component In / Out 0/0
HDMI In / Out 6 / 3
Multi-Room Video Out via HDMI Yes
Analog In / Fixed Level Out 5 in / 0 out
Phono (MM) In Yes
Digital In: Optical / Coaxial 2 / 2
Multi-Room Out: analog / digital 1 /0
Multichannel Preamp Out 11.4
Subwoofer Out 4 (independent)
7.1 multichannel input No
Number of Speaker Terminals 11
Speaker A / B assignable
Multi-Room Speaker Terminal assignable
Front Inputs USB-A
USB Audio / Made for iPod / Made for iPhone Yes / No / No
USB Audio Yes
AM/FM Tuner Yes
HDMI
Total HDMI Inputs / No. Support 8K 6 / 6
HDCP2.3 support Yes
HDMI Outputs: Main / Zone 2 / 1
Analog to HDMI Video Conversion No
HDMI Upscaling 1080P/4K to 8K
Max resolution @ framerate 8K/60Hz, 4K/120Hz
Audio Return Channel ARC, eARC
Video Dynamic Range HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR
ALLM (Auto Low Latency Mode) Pass-through for gaming Yes
Variable Refresh Rate / Quick Frame Transport Yes / Yes
HDMI Pass-Through in Standby Mode Yes
CEC Yes
DSD Audio over HDMI Yes
Auto LipSync Yes
Performance Technologies
Copper Plated Chassis No
Toroidal Power Supply Transformer No
Hyper Dynamic Amplifier Modules (HDAM) (List version) Yes
Pure Direct Mode Yes
Gold Plated RCA Terminals Yes
Clock Jitter Reducer Yes
Acoustic / Room Correction
Audyssey MultEQ XT32
Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
Audyssey LFC Yes / Yes
Dirac Live Upgradability Yes
Variable Cross Over Yes
Optimized Bass Redirection Yes
Bass Sync Yes
Music File Support
Lossy Formats MP3 / WMA / AAC
Lossless formats FLAC HD 192/24 / WAV 192/24 / ALAC 192/31
DSD Audio 2.8 MHz / 5.6MHz
Gapless Playback FLAC, WAV ,ALAC ,DSD
Compressed Audio Enhancer: MDAX2 Yes
Network Audio Sharing Yes
Streaming Services
HEOS Multi-room and Streaming Yes
AirPlay Audio Streaming AirPlay 2
Internet Radio TuneIn
Spotify* Spotify Connect
Pandora Yes
SiriusXM Yes
Other Streaming Services * Amazon Music HD/
Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / SoundCloud / Mood Mix
Roon tested Yes
Network Connectivity
Ethernet Ports Yes
Wi-Fi (include version / band) Yes
Bluetooth (Include version) Yes
Bluetooth Re-transmit for Bluetooth headphones Yes
Smart Home Integration And Control
Voice Assistant Compatibility Alexa / Google Voice Assistant / Apple HomePod
App for Smart Phones & Tablets (iOS & Android) Marantz AVR Remote App, HEOS
HEOS Multi-Room Integrated Yes
HEOS Link Compatibility: IR/ IP Yes / Yes
Multi-Room zones 2
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog 2 Ch / 2 Ch / Yes / Yes
Zone Audio Output: Speaker / Preout Yes / Yes
Zone HDMI Output from HDMI Source Yes
Control Connectivity IP Control / RS232 Control / Web Control / App Control
IR Flasher In Yes
Marantz Remote Bus Yes
DC Trigger Output 1
HDMI Diagnostics Yes
Others
Front Display port hole OLED
GUI Languages 3
Setup Assistant Yes
Smart Select on Remote Yes
Firmware Update by Network / USB Yes / Yes
ECO Mode Yes
Auto Power off Yes
Sleep Timer Yes
General
Available Colors Black
Metal Front Panel Yes
System Remote Control RC049SR
Power Consumption in W 680
Power Consumption No-Sound (ECO on/off) in W 60 / 100
Standby Consumption in W 0.2
CEC Standby Consumption in W 0.5
Network Standby Consumption in W Less than 2.0
Maximum Dimensions
Antenna:Horizontal:(W x D x H) in inches
Antenna:Vertical :(W x D x H) in inches
W/o Antenna:(W x D x H) in inches 17.4 x 15.9 x 6.5
17.4 x 15.9 x 9.3
17.4 x 15.4 x 6.5
Weight in lbs. 29.8
What's in the box Main unit, remote control, batteries, wire labels, quick start guide, Audyssey microphone, microphone stand, 2 External Detachable Antenna, AC cord
