:Specifications
5.2.4/7.2.2-ch Dolby Atmos® and DTS:X® playback
Dolby Atmos Height Virtualization
Dolby Surround® and DTS® Neural:X upmixing
HDMI®*1 supports 8K/60p (4:4:4/12-bit*2, 4:2:2/12-bit*2, 4:2:0/10-bit*3), 8K/30p (4:4:4/12-bit*2, 4:4:4/10-bit*3, 4:2:2/12-bit*3, 4:2:0/12-bit), 4K/120p (4:4:4/12-bit*2, 4:4:4/10-bit*3,4:2:2/12-bit*3, 4:2:0/12-bit) video passthrough, HDR10+, Dolby Vision™, HDR10, HLG, BT.2020, VRR (Variable Refresh Rate), DSC (Display Stream Compression), ALLM(Auto Low Latency Mode), QFT (Quick Frame Transport), QMS (Quick Media Switching), eARC (enhanced Audio Return Channel), DeepColor™, x.v.Color™, LipSync, and HDCP 2.3
11.2-ch pre-outs*4 and processing for 7.2.4-ch*5 layouts
HDMI Main Out with eARC for encoded HQ audio, Sub/Zone 2 Out with OSD*6
Bidirectional Bluetooth® wireless technology Version 4.2 + LE (A2DP v1.2, AVRCP v1.3; RX: SBC/AAC, TX: SBC/Qualcomm® aptX™/apt X HD)
Separate Zone 2 speaker outputs enable 5.2.4-ch + Zone 2 speaker connection, 5.2.4-ch playback switching to 5.2.2-ch + Zone 2 playback*7
Dedicated DACs support synced/independent D/A audio distribution in Zone 2 and Zone 3 (including HDMI/SPDIF/NET*8) via Zone 2 and Zone 3 speaker outputs, Zone 2 pre-out*9 and Zone 3 pre-out*4
Share any MAIN audio source to a wireless headphone dock via Zone B line-out*9
Phono equalizer (MM) and SACD (Super Audio CD) playback via HDMI (2.8 MHz 2-ch/multichannel)
Dirac Live® Room Correction supports multi-point acoustic calibration
AccuReflex™ phase-matching solution for Dolby Atmos enabled speakers
Original DSP-based Vocal Enhancer clarifies in-program vocals/dialog
Amplification Technology
120 W per channel (8 ohms, 20 Hz–20 kHz, 0.08% THD, 2-ch driven, FTC)
THX® Certified Select for Theater Reference Sound
IMAX® Enhanced certified for IMAX® digital remasters
Low-impedance amp system with 4-ohm speaker-driving capability
Massive custom transformer and customized 15,000 μF capacitors
Copper bus-bar connects capacitors to amplifiers
Non-phase-shift amp-circuit topology, audio-grade parts, and separate digital/analog circuit boards
Extruded anti-resonant aluminum heat-sink
Precision DAC supports 192 kHz/24-bit multichannel D/A conversion
VLSC™ (Vector Linear Shaping Circuitry) filtering technology (Front L/R)
PLL (Phase-Locked Loop) jitter-cleaning circuitry for SPDIF digital audio
Front L/R speaker bi-amping capability in 5.2/7.2/5.2.2-ch configuration
Independent tone controls (bass/treble) for all channels Network Features and Multi-Zone Audio
Isolated quad-core SoC board supports high-speed 802.11ac (2x2 MIMO*10) Wi-Fi®
Amazon Music HD*11, Spotify®, TIDAL, TuneIn, Pandora®, and Deezer*12
Works with Sonos supporting multiple Sonos Connect/Port control and Volume Passthrough mode*13
Works with Alexa supporting multi-room music*14
Works with Hey Google*15 and Chromecast built-in™
AirPlay 2 multi-room audio with Siri voice control
DTS Play-Fi®*16 multi-room audio via Integra Music Control App*17
Compatible with the Integra Remote app for iPad®, iPhone®, and Android™*17
Roon Tested certified for the Roon Core
Hi-Res Audio via network (DSD 11.2 MHz/5.6 MHz/2.8 MHz*18, FLAC, WAV [RIFF], ALAC, and AIFF to 192 kHz/24-bit*19)

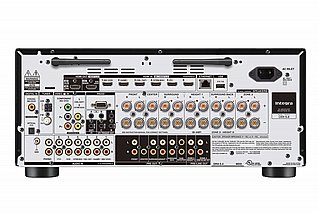

Audio-Video Connections
7 HDMI inputs (1 front), Main Out (eARC), Sub/Zone 2 Out
2 digital audio inputs (rear, 1 optical, 1 gold-plated coaxial, assignable)
6 gold-plated analog audio inputs (rear, assignable)
Gold-plated phono input and built-in equalizer (MM) for turntable connection
USB input (5 V/1 A) for audio playback (rear)
1/8˝ (3.5 mm) Dirac Live/AccuEQ Advance setup mic input (front)
2 gold-plated composite video inputs (rear, assignable)
1 gold-plated component video input (rear, assignable)
1/4˝ (6.3 mm) gold-plated headphone jack
11 gold-plated banana-plug-ready speaker posts with transparent knobs (including Zone 2)
Dedicated gold-plated Zone 2 speaker outputs*7
Gold-plated 11.2-ch pre-outs*4
Gold-plated Zone 2 pre-out / Zone B line-out (analog RCA*9)
Ethernet LAN terminal
Custom Integration Features
10BASE-T/100BASE-TX Ethernet supports setup and IP control via web browser
Works with Crestron®, Control4®, Savant, URC, ELAN, and RTI automation
RS-232 input for external control and automation
2 IR inputs and 1 output
3 programmable 12 V trigger-outs with adjustable delay (A: 100 mA, B: 25 mA, C: 25 mA)
Dealer-settings memory storage and recall function
AC inlet for detachable IEC power cable
Optional rack-mount kit (IRK-180-4C)
Additional Features
Aluminum front panel and volume knob
Front-to-Surround/Height speaker switching in Stereo Assign Mode
One-touch volume memory preset assignment to individual A/V inputs via front panel
OSD function displays A/V input signal data, output signal/settings data, and network information
Dolby® TrueHD and DTS-HD Master Audio® decoding
THX® listening modes for films, games, and music
Advanced Music Optimizer™ improves compressed audio playback quality
High-definition GUI over HDMI
Super Resolution 1080p to 4K and 1080p/4K to 8K video upscaling via HDMI
Crossover Adjustment (40/45/50/55/60/70/80/90/100/110/120/130/150/180/200 Hz)
A/V Sync Control (Up to 500 ms in 1 ms steps at 48 kHz*20)
Sleep timer, HDMI passthrough, and network standby
40 FM/AM/internet radio presets with station-naming (10 characters)
3-Mode display dimmer (Normal/Dim/Dimmer)
Tuner
Tuning Frequency Range: FM 87.5 MHz–107.9 MHz AM 530 kHz–1,710 kHz
FM/AM Preset Memory: 40 Stations
General
Power Supply: AC 120 V~, 60 Hz
Power Consumption: 850 W
Standby Power Consumption: 0.1 W
Dimensions (W x H x D): 17 1/8˝ x 7 13/16˝ x 15 5/16˝ (435 x 198 x 388.5 mm)
Weight: 30.9 lbs. (14.0 kg)
Carton Dimensions (W x H x D): 22 1/16˝ x 12 5/8˝ x 18 3/16˝ (560 x 320 x 462 mm)
Weight: 37.5 lbs. (17.0 kg)
