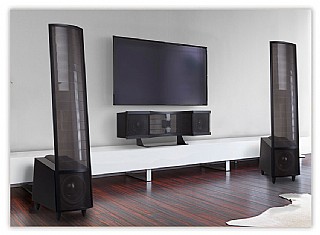

זוג רמקולים רצפתיים MARTINLOGAN ElectroMotion® ESL X
SPECIFICATIONS
System Frequency Response
41–22,000 Hz ±3 dB
Recommended Amplifier Power
20–400 Watts per channel
Dispersion
Horizontal: 30 degrees
Vertical: 40” (101.6 cm) line source
Sensitivity
91 dB / 2.83 volts / meter
Impedance
6 ohms (1.6 ohms @ 20 kHz min.). Compatible with
4, 6, or 8 ohm rated amplifiers
Crossover Frequency
400 Hz
High-Frequency Driver
XStat™ CLS™ Electrostatic transducer
Panel dimensions: 40” x 8.6” (101.6 cm x 21.8 cm)
Radiating area: 344 in2
(2,215 cm2)
Woofers
Two 8” (20.3 cm) high excursion, high-rigidity
paper cones with extended throw driver assembly,
non-resonance asymmetrical chamber format, bass reflex
Components
Custom-wound audio transformer, air core coils,
large steel laminate inductors, polyester capacitors,
and low DF electrolytic capacitors
Weight
52 lbs. each (23.6 kg)
Size (H x W x D)
59.2” x 9.4” x 20.7” (150.3 cm x 23.8 cm x 52.6 cm)
אחריות: 3 שנים ע"י היבואן הרשמי
