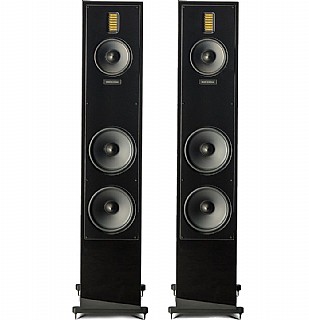

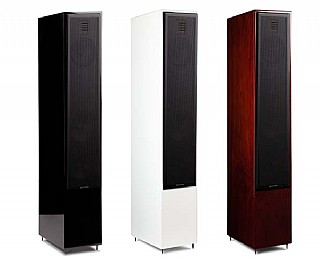

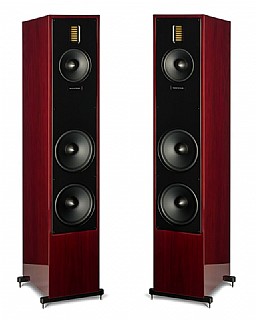

MARTINLOGAN Motion 60XT זוג רמקולים רצפתיים
SPECIFICATIONS
Frequency Response
35–25,000 Hz ± 3 dB
Dispersion
80° x 30°
High Frequency Driver
1.25” x 2.4” (3.2cm x 6.1cm)
Folded Motion XT Transducer with 4.5” x 2.75”
(11.4cm x 7cm) diaphragm.
Mid Frequency Transducer
6-1/2” (16.5cm) aluminum cone with cast polymer
basket. Sealed chamber format. Rigid structured dust
cap to reduce cone break-up modes.
Low Frequency Transducer
Two 8” (20.3cm) aluminum cone with cast
aluminum basket. Non-resonant asymmetrical
chamber format. Rigid structured dust cap to reduce
cone break-up modes.
Sensitivity
94 dB @ 2.83 volts/meter
Impedance
4 Ohms. Compatible with 4, 6,
or 8 Ohm rated amplifiers.
Recommended Amplifier Power
20 – 400 watts
Crossover Frequency
400 & 2,200 Hz
Cabinet
Ported
Components
Custom air core coil and low DCR steel laminate
inductors. Polypropylene film capacitors in series and
low DF electrolytic capacitors in parallel. Tweeter
thermal/current protection.
Inputs
Custom 5-way bi-wire tool-less binding posts
Weight
66 lbs. (30 kg)
Dimensions
48” x 11.4” x 14.4”
(121.8cm x 29cm x 36.6cm)
אחריות:3 שנים ע"י הבואן הרשמי
The dominant Motion 60XT speaker features our largest and most accurate
Folded Motion™ XT tweeter, a 6-1/2” aluminum cone midrange and two 8”
high-performance aluminum cone bass woofers.
Audiophile Dominance with Style
XT stands for extreme, and for good reason. Motion 60XT speakers play louder, lower
and with unflinching accuracy. Dual 8” woofers and rear-firing bass ports create
astonishing deep, precise bass, while a dedicated mid woofer promotes an open,
revealing and authentic midrange. Paring this powerful trio with our most accurate
Folded Motion XT tweeter creates audible acoustic alchemy that delivers an engaging
and encompassing experience, cutting straight to the emotion locked inside your
favorite recordings.
